Starter Motor

39MT Series

Compact gear-reduction starter — faster cranking, lighter weight, longer life.

Delco Remy
Voltage
12V / 24V
Power
7.3 kW / 9 KW
Products
42 SKUs
Brand
Delco Remy

Overview

The 39MT is Delco Remy's heavy-duty gear-reduction starter, using a planetary gear set to deliver high torque output from a significantly more compact and lighter package than equivalent straight-drive models — weighing just 30.8 lbs (14 kg). Available in 12V (7.3 kW) and 24V (9.0 kW), it cranks up to 30% faster than comparable starters. Its sealed noseless design, electrical soft-start, and built-in over-crank protection make it especially well suited to demanding duty cycles and cold-weather operation.

Key Features

  • 12V at 7.3 kW and 24V at 9.0 kW peak output — up to 30% faster cranking than competitors
  • Planetary gear-reduction motor; weighs only 30.8 lbs (14 kg)
  • Starts engines up to 15 Liters (12V) and 16 Liters (24V) displacement
  • Electrical Soft-Start — rotates pinion into mesh before full cranking torque is applied
  • Sealed noseless design minimises debris accumulation in harsh environments
  • Built-in Over-Crank Protection (thermal circuit breaker) and rotatable flange for service flexibility

Applications

  • Heavy-duty on-highway trucks and vocational vehicles
  • Transit and commuter buses
  • Construction and off-highway equipment
  • Emergency response vehicles (fire, ambulance)
  • Applications requiring compact packaging with high torque output

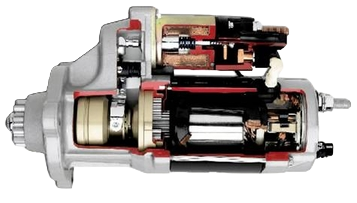

39MT series product photo

Interested in these products?

Select products below and add to your enquiry list, or send us your requirements.

Send Requirements

Products in the 39MT Series (42)

SKU Voltage Power Pinion Mount Type Stock Actions
19011530 12V 7.3 kW 11 SAE 3 Discontinued View
61002204 12V 7.3 kW 12 SAE 3 Available to Order View
61002205 12V 7.3 kW 12 SAE 3 Available to Order View
61003202 24V 9 kW 11 SAE-3 Discontinued View
61008898 12V 7.3 kW 11 SAE 3 Available to Order View
61010754 12V 7.3 kW 11 SAE-3 Available to Order View
61011314 12V 7.3 kW 11T SAE-3 Available to Order View
61013765 12V 7.3 kW 11 SAE-3 Available to Order View
61014400 12V 7.3 kW 11 SAE 3 Available to Order View
61015900 12V 7.3 kW 11 SAE 3 Available to Order View
61015901 24V 9 kW 11 SAE 3 Available to Order View
61017311 12V 7.3 kW 12 SAE 3 Available to Order View
8200272 24V 9 kW 12 SAE 3 Discontinued View
8200287 12V 7.3 kW 12 SAE 3 Available to Order View
8200288 12V 7.3 kW 11 SAE 3 Available to Order View
8200289 12V 7.3 kW 11 SAE 3 Available to Order View
8200290 12V 7.3 kW 11 SAE 3 Available to Order View
8200291 12V 7.3 kW 12 SAE 3 Available to Order View
8200308 12V 7.3 kW 11 SAE 3 Limited Stock4 View
8200321 24V 9 kW 11 SAE 3 Available for Allocation View
8200330 24V 9 kW 11 SAE 3 In Stock View
8200433 12V 7.3 kW 12 SAE 3 Limited Stock1 View
8200434 12V 7.3 kW 12 SAE 3 Available to Order View
8200435 24V 9 kW 12 SAE 3 Limited Stock6 View
8200436 24V 9 kW 12 SAE 3 Available to Order View
8200468 12V 7.3 kW 11 SAE 1 Available to Order View
8200469 12V 7.3 kW 12 SAE 3 Available to Order View
8200519 24V 9 kW 12 SAE 3 Available to Order View
8200522 24V 9 kW 11 SAE 3 Discontinued View
8200657 12V 7.3 kW 11 SAE 3 Discontinued View
8200704 24V 9 kW 11 — Discontinued View
8200706 24V 9 kW 11 SAE 3 Discontinued View
8200736 24V 9 kW 12 SAE 3 Available to Order View
8200742 12V 7.3 kW 11 SAE 3 Available to Order View
8200763 12V 7.3 kW 12 SAE 3 Available to Order View
8200793 12V 7.3 kW 11 SAE-1 Available to Order View
8200829 12V 7.3 kW 11 SAE 3 Available to Order View
8200899 12V 7.3 kW 11 SAE 3 Available to Order View
8200971 12V 7.3 kW 11 SAE 1 Available to Order View
8201100 12V 7.3 kW 12 SAE 3 Available to Order View
8201140 24V 9 kW 12 SAE 1 Available to Order View
8201143 12V 7.3 kW 12 SAE 3 Available to Order View
